Memory¶

Memory is a core component for computers which allows it to remember information for future use. Without memory, CPUs won't be able to make sense of any opcode used for executing machine code, it won't be able to perform multistep processing which requires storing intermediate results, and lastly it won't be nearly as fast as it’s now. Technology like RAM/ROM provided CPUs with faster storage and retrival operations compared to other storage, but the data is only persisted for the duration its supplied with power. This lead such a high adoption of RAM as memory such that this technology has become synonymous with memory in computers.

Different kinds of memory¶

The core concept of memory is to allow byte addressability over its information, such access to all available addresses are equivalent. But different requirements like speed, persistence lead to development of different kind of memories. Below we'll discuss different kinds of memory and how they evolved over time.

ROM (1) was designed so that it wouldn't lose its configuration even in absence of power, the tradeoff was it could only store static data (2). This kind of memory is still used to store information like CPU opcodes(3), and firmware like BIOS/UEFI (any data which isn't changed normally).
1. Read Only Memory, non-volatile read only memory.
2. ROM stores data by physically encoding it into the hardware during manufacturing. The patterns of bits are "burned in" using fixed wiring, programmed fuses, or permanently set transistors, so the data remains even without power and cannot be easily changed afterward.
3. Opcodes are machine codes which are the lowest level of instruction understandable by a CPU.
RAM (1) technology allowed to reset its configuration electrically such that same circuit can be reused to stored different information. This allowed CPU to use this space as scratch board for its execution, where it can store temporary information like intermediate result from execution of an operation.
1. Random Access Memory, since you can access information using random addresses

Further RAM can be divided into two categories based on their implementation and usage.

DRAM(1), used for general memory is a slower and cheaper RAM compared SRAM. It's cheaper because it's only uses 1 Capacitor and transistor to build 1-bit memory. Information of each bit is stored as charge in capacitor, but since capacitors leak charge over time, you need a mechanism to refresh the charge done using Sense Amplifier. When reading a selected row, capacitor's tiny charge is shared on bitline which leads to a tiny change in voltage. This change is detected by Sense Amplifier which amplifies it to corresponding 0 or 1. Since releasing charge would corrupt the state of capacitor, sense amplifier writes the value back (refreshes it). When writing, sense amplifier turns the bitline to 0 or 1, which forces the capacitor to charge or discharge for storing the new bit. Since DRAM uses less electrical circuitry to make 1-bit, its more compact and cheap making it ideal for developing large memory. But its less performant as it needs to refresh the charge regularly (~64ms) making it less idea for low latency parts.
1. Dynamic RAM
Evolution of DRAM

In Earlier days, DRAM was asynchronous. It didn't use the system clock due to which the CPU had to wait and insert delays, as it didn’t know exactly when DRAM would finish operations. This caused timing mismatches and inefficiency.
SDRAM was developed to address this issue by providing clocked, synchronous operation. Now it'd use the system bus clock, which made data transfers occur at precisely defined clock edges, so the CPU knows exactly when data will be ready. Because it’s synchronized, SDRAM can accept a new command every clock cycle (even while previous ones are still in progress), greatly improving throughput.

SDRAM still used only single rising edge of clock to transfer data, we’d double the rate of transfer if we can also use the falling edge of clock as well. This lead to development of DDR SDRAM (1). Overtime, DDR SDRAM evolved from version 1 to 5. In DDR4 SDRAM, we’d 8 pins where each pin could fetch 8 bits per I/O. This was designed to maximize the caching in CPU which is a 64 bytes cache lines. So while we’re fetching certain data, we’d also fetch the remaining portion in 64 bytes window and this is called burst. The issue with current RAM is that it can only be used by single core of CPU at a time, so it'd be a waste to use it on multicore CPU since all other core’s would’ve to wait for currently accessing CPU. This was solved by DDR5 SDRAM, which doubled the bits fetched by each pin to 16 bits per I/O. Now, you can divide the 64 pins into 2 sections to fetch 64 bytes (16x32) and each of these sections were called channels.
1. Double Data Rate SDRAM
SRAM (1), used in CPU caches has much faster access than RAM. It stores data using flip-flops (2) , so it doesn’t require the constant refreshing that RAM does making it much faster. However, manufacturing SRAM is more expensive and takes more space (3), so you can’t build large memories with it. This makes it ideal for small, high-speed memory like L1, L2, and often L3 cache.
1. Static RAM
2. Made up of transistors
3. 6 transistors to build 1 bit.

RAM Module¶

When we're installing RAM, we've mostly come across this kind of component. Usually, it comes as SO-DIMM(1) which consists of 3 majors parts:

Small Outline Dual In-line Memory Module

The PCB (1) with gold connectors and multiple layers of copper traces which provides connectivity b/w memory controller on PC motherboard and DRAM chips for signal routing(2), power, and ground planes.

Printed Circuit Board
like Address lines to specify the input, Data lines for transferring data

Next, you can see multiple black ICs mounted on PCB, known as DRAM chips. Each DRAM chip stores a portion of the module’s total memory capacity. Inside every DRAM chip, data is stored in memory cells arranged in Banks, Rows and Columns.

Banks are independent memory region inside a DRAM chip, which allows parallelism: one bank can be precharging while another is reading/writing. Each bank is further divided into a table like structure with multiple rows and columns, where each row must be opened (activated) before reading or writing.
Rows are horizontal slice of memory inside a bank. To read data from a row, the entire row needs to be activated and pulled into row buffer/sense amplifiers. This design allow you to only access data from 1 open row per bank at a time, because switching to a different row requires, PRECHARGE (close the current row) and ACTIVATE (open a new row) commands. This is where “row hit” and “row miss” performance behavior comes from where
- If the row is already open → row hit → fast read directly from row buffer.
- If a different row is open → row miss → slow as it needs PRECHARGE and ACTIVATE operations.
Columns represent the smaller divisions inside a row. After a row is activated, the read/write command specifies column address to pick the exact data word out of the row buffer. You can read multiple columns in a single burst-read operation (often burst length = 8).
Cells are the fundamental storage unit of DRAM, build using a capacitor which stores the state (0/1) and a transistor which controls the access to capacitor.

Lastly, a small EEPROM chip called SPD (1) found at center of module above image. It contains a small amount of non-volatile memory that stores configuration, timing, and identification data so the motherboard knows how to correctly initialize and run the memory.

Serial Presence Detect

Data Alignment¶

CPUs read data in fixed byte sized (1) blocks from its cache known as cache lines (2). For example, if a CPU with 64-byte cache lines needs to load address 150, it fetches the entire 64-byte block from address 128–191.

4-, 8-, 16-, or 32-byte
A cache line is the smallest block of memory that the CPU’s cache can load from RAM and store internally.

With this access pattern, if a variable lies across two cache lines, the CPU would need two memory accesses which is slower and more complex to handle. To solve this problem, data alignment was introduced.

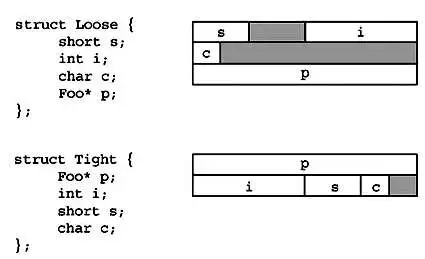

With Data alignment, variables in memory are stored at addresses that are multiples of their size (or their required alignment boundary).

Typically aligned data type

Data Type	Size	Common Alignment
`char`	1 byte	1-byte aligned
`short`	2 bytes	2-byte aligned
`int32`	4 bytes	4-byte aligned
`int64` / `double`	8 bytes	8-byte aligned
SIMD types (e.g., 128-bit)	16 bytes	16-byte aligned

Check following diagram to see how alignment is done when storing variables,

flowchart TD

    %% Main memory layout
    subgraph Memory["Physical Memory Layout"]
        direction TB
        A1000["1000: char a (1 byte)"]
        PAD["1001–1003: padding (3 bytes)"]
        A1004["1004–1007: int b (4 bytes)"]
    end

    %% Flow connections (visual sequence)
    A1000 --> PAD --> A1004

    %% Side explanation nodes
    NOTE1["Step 1: Store char a → placed at address 1000"]
    NOTE2["Step 2: Next free = 1001; int requires 4-byte alignment so add 3 bytes of padding to reach 1004 boundary"]
    NOTE3["Step 3: Store int b = 1 → stored at 1004–1007"]

    %% Attach side notes
    NOTE1 -.-> A1000
    NOTE2 -.-> PAD
    NOTE3 -.-> A1004

Use mouse to pan and zoom

You might notice that padding in cache line would lower the utilization of each cache lines. but the performance boost provided by such alignment far outweighs this cost. However, you can minimize padding, by decision like, reordering fields inside a struct or designing data layouts manually for cache-line friendliness. Google used this technique to improve performance of Linux TCP/IP stack by 40% by reordering internal structs (blog).

This alignment is managed by 3 cooperating layers:

CPU at hardware level defines rules for alignments like valid addresses for each instruction, alignment required for each data type size, and if the CPU can handle misaligned access natively.
Compiler enforces the alignment when organizing memory during compilation by arranging address of various objects like variables, struct fields, stack frames and heap allocations.
When you allocate memory dynamically like using malloc, the C standard requires malloc to return a pointer suitable for storing any data type. Meaning it must be aligned to at least 8 or 16 bytes depending on platform. So, the OS gives pages aligned to large boundaries (e.g., 4 KB) and memory allocator (1) returns aligned chunks (8, 16, or 32 bytes).
1. glibc, dlmalloc, jemalloc, etc.

Memory Management with Virtual Memory¶

Using only physical memory directly to manage processes creates several significant limitations:

Fragmentation: Each process during initialization is provided a continuous block of memory for its operations. As the process continues its execution, it’d allocate and deallocate memory which results in creating small gaps of unused memory. This leads to underutilization of memory, because even though we’ve enough free space, we don’t have a continuous block.
Shared Memory: implementing shared memory could poise security risk where one process can accidentally (or maliciously) overwriting another’s memory.
Isolation: it’s difficult to isolate access to memory for different process as all data is present on same circuit
Large Programs: Physical RAM is finite and processes must fit entirely in RAM for their execution which limits the number of process at a time. Worse Large applications may not run at all if there isn’t enough contiguous memory.

Virtual Memory was designed to overcome these limitations. It's simply a fake/virtual continuous address space which is mapped to real physical memory address on RAM. With this, you can allocate each process a continuous virtual address which when accessed would be translated to physical address by CPU. This translation is done using Page Table(1) and MMU(2).

Data structure which maps virtual address to physical address, created by OS Kernel. Each Process has its own Page Table private to it.
Memory Management Unit, the component in CPU responsible for translating the virtual address to physical address.

This would solve all of above limitation:

Solve fragmentation by grouping discrete memory location and mapping them together to a continuous virtual memory address.
To provide Shared Memory between two different process, we can simply map the page table such that it points to same physical address. This has variety of use cases like
- avoid storage of duplicate data in memory, for example the code section of same program with multiple processes.
- avoid reloading same libraries again, for example loading of libc library once and reusing the same memory location in rest of the processes. You can see this mapping in linux using cat /proc/[pid/maps command.
- faster forking of new process/thread from multiprocessing and multi-threading by simply copying memory parent to the child process. When the child process writes to memory, it’ll be added at a separate location by updating the page table using this concept is called CoW (Copy on Write).
- simple implementation of shared buffers in databases
Guaranteed Isolation of Physical memory for each process. Because the page table will only point to memory accessible by its process and this Table lives in Kernel Space which makes it secure from tinkering by bad agents.

It also solves problem of limited memory by allowing OS to use more memory than the capacity of RAM. This is done using called Page Swap. Following diagram showcases how Page Swap is used to allocate space for new process

    sequenceDiagram
        participant Process
        participant OS as Kernel
        participant Mem as Physical Memory
        participant Disk as Swap Space

        Process->>OS: Request memory allocation
        OS->>Mem: Check available free frames
        Mem-->>OS: Not enough free memory

        OS->>OS: Select victim pages (replacement policy)

        OS->>Mem: Identify victim page frame
        Mem->>Disk: Write victim page to swap (if dirty)
        Disk-->>OS: Swap write complete

        OS->>Mem: Free the victim frame
        OS->>Disk: Read needed page from disk
        Disk->>Mem: Load required page into freed frame

        OS->>Process: Memory allocated successfully
        Process->>Process: Continue execution

Use mouse to pan and zoom

But when the swapped process returns for execution, Kernel needs to reload the swapped memory into RAM to for its continued execution. This is done using Page Fault, which is explained below

    sequenceDiagram
        participant Process
        participant CPU
        participant MMU as MMU<br/>(Memory Mgmt Unit)
        participant OS as OS<br/>(Page Fault Handler)
        participant Memory as Physical Memory
        participant Disk as Secondary Storage

        Process->>CPU: Execute instruction
        CPU->>MMU: Request virtual address translation
        MMU-->>CPU: Page Fault (page not in RAM)

        CPU->>OS: Trigger Page Fault Interrupt
        OS->>OS: Determine victim page (replacement policy)
        OS->>Memory: Mark victim page for eviction
        Memory->>Disk: Write victim page to disk (if dirty)

        OS->>Disk: Read required page into memory
        Disk->>Memory: Load page into freed frame

        OS->>MMU: Update Page Table (new mapping)
        OS-->>CPU: Return from interrupt

        CPU->>MMU: Retry memory access
        MMU->>Process: Provide physical address
        Process->>Process: Continue execution

Use mouse to pan and zoom

The tradeoff of using Virtual Memory:

Increased overhead and slower performance of memory. Virtual memory requires Page table lookups, TLB (1) management, Page fault handling. When a page fault occurs, the OS must fetch data from disk — which is millions of times slower than RAM. This can significantly slow system performance.
1. Translation Lookaside Buffer
When the system spends more time swapping pages in and out of disk than executing actual processes, it enters a state called thrashing which drastically reduces performance. This happens when either working sets don’t fit in RAM or we're running too many processes simultaneously.
Introduces higher complexity in OS and hardware. Virtual memory requires Page tables, TLB support, Sophisticated algorithms for replacement, allocation, protection. This makes hardware (MMU) and OS design more complex.
Large processes require very large page tables. Maintaining and storing them consumes a lot of memory and CPU time (updating entries, context switching). Even optimized designs (e.g., multi-level page tables) add complexity.

Direct Memory Access (DMA)¶

Earlier days, moving data between I/O devices(1) and memory would've to be done through CPU which involved reading a chunk of data from one side to CPU and copying it over from CPU to another side, and this process is repeated for every piece of data. This is extremely slow and wastes CPU time, specially when moving large amount of data. But with DMA, the CPU can delegate the transfer, freeing the CPU to do other work.

like disk controllers, network cards, sound cards, GPUs, etc.

DMA is a hardware feature that allows certain components of a computer (mainly I/O) to transfer data directly to or from main memory (RAM) without involving the CPU for every byte or word.

Here’s the general flow of a DMA operation:

sequenceDiagram
    participant CPU
    participant DMA as DMA Controller
    participant Device as I/O Device
    participant Mem as Main Memory

    CPU->>DMA: Configure DMA (source, destination, size, direction)
    CPU->>DMA: Start DMA operation
    CPU-->>CPU: Continue other tasks

    DMA->>Device: Request data (or prepare to send)
    Device-->>DMA: Provide/receive data stream

    DMA->>Mem: Transfer data directly to/from memory
    Note over DMA,Mem: Bus arbitration, DMA controls the bus<br/>("cycle stealing" or burst mode)

    DMA->>CPU: Interrupt → DMA transfer complete
    CPU->>CPU: Handle completion and resume tasks

Use mouse to pan and zoom

Bus Arbitration

Computers have multiple components that may want to read/write memory but only one can use the bus at a time, because the memory bus is a shared resource. Bus arbitration helps determines which device gets control of the system bus when multiple components want to use it at the same time. There are various arbitration strategies depending on factors like fairness, stability and priority, the most commonly used strategy is Centralized Bus Arbitration(1).

uses a dedicated chip (or circuit inside the chipset) that acts as the bus arbiter. The arbiter receives requests from multiple devices and decides based on, priority levels, fairness algorithms and current bus load.

Since bus arbitration affects the working of CPU, DMA provide different mode of operations for different use cases:

Burst Mode DMA transfers an entire block at once which is fast but this would block the bus for longer duration, which blocks CPU from accessing memory.
Cycle Stealing DMA steals a bus cycle occasionally so the CPU can still work providing a balanced performance.
Transparent DMA: Runs only when CPU is not using the bus which makes transfer slow, but it avoids any interference with CPU.

Modern systems which involves transferring huge amounts of data, like streaming high quality video, reading/writing large files/network packets would consume 100% of CPU time if done manually. Using DMA in such systems is crucial as it provides high throughput and low CPU overhead. But using DMA can be a security risk as it works directly with Physical Memory Address. To protect memory from unauthorized DMA, use IOMMU (1) which limits what memory addresses a DMA device can access.

Input-Output Memory Management Unit

Analyzing memory usage in Linux using top

You can use top command in Linux to analyze memory usage. When executed, output at top of screen would be similar to following table.

MiB Mem :  7890 total,  5320 used,  1020 free,   450 buff/cache
MiB Swap:  2048 total,   220 used,  1828 free,    40 avail Mem

The key fields are:

total -> total amount of system RAM or swap.
used -> memory currently in use by processes + OS/internal usage. Linux uses free memory for caching, so used often appears high which is normal.
free -> Memory not used for anything at the moment.
buff/cache -> Memory used for buffers (block device metadata) and Cache (file system cache). This memory is reclaimable, meaning Linux can free it when applications need more RAM.
avail Mem -> estimated memory realistically available for new apps without swapping.

Below which you'll see a list of running process with following headers

PID  USER   PR  NI   VIRT   RES   SHR  S  %MEM  COMMAND

VIRT -> Virtual Memory Size, total virtual memory used by the process, including, code, data, shared libraries, mapped files and swap if used. Not all of this is physically in RAM.
RES -> Resident Set Size, amount of actual physical memory the process is using.
SHR -> Shared Memory, is the portion of memory that is shared with other processes (libraries, shared memory segments).
%MEM -> percentage of physical RAM this process uses.
